Ontech PIR 9011
Ontech PIR 9011 is a motion detector
Temperature sensor
External temperature sensor that fits the models Ontech GSM 9025/9035/9040 and Ontech Relay 9015.
Functions
- External temperature sensor with 2 meter cable.
- 2.5 mm plug that fits the models Ontech GSM 9035 Ontech GSM 9040 and Ontech Relay 9015.
- When connected to Ontech GSM 9025, remove the plug and connect the cables to the screw terminal. Accuracy +/- 1 degree C.
- The cable can be extended up to 10 meters.
Extra Relay 9015
Ontech Relay 9015 is a wireless accessory for the Ontech GSM 9025 or Ontech GSM 9040 main units. For indoor use. The Ontech Relay 9015 is an additional relay with two alarm inputs and temperature elements. The device can be used for remote control of a 230 V outlet, as alarm unit and for temperature alarm and thermostat.
Functions
Specifications
Documents
- The device communicates with the main unit with a short-range radio frequency of 2.4 GHz. Up to 7 Ontech GSM Relay can be connected and controlled individually to each main unit.
- The unit has a 230V outlet that can be switched on and off by any of the main devices such as elements, pumps, etc.. The power supply can be delayed, from 1 second to 99 hours.
- The unit has a built-in temperature sensor. An external temperature sensor can be connected. This is an optional accessory and is not included. Upon request, the unit reports the temperature.
- The unit can be set to alert if the temperature exceeds or falls below a preset temperature.
- The unit can be used as a thermostat if one element is connected to the 230 V socket.
- The device has two wired alarm inputs. These can be set to end up (Normally Open, NO) or Breaking Function (Normally Closed, NC). Various types of alarms can be connected to these, such as fire alarms, motion detectors, level detectors, etc.
- Easy to install. Put the device into a wall outlet and it automatically contacts the main unit and registers in the Ontech system.
- The range is approximately 30 meters in the free field. This is usually enough for a normal sized villa. The devices also function as “repeaters”, ie they forward the radio signal to the main unit from devices further away. This increases the range of the system.
Specifications
| Temperature range | – 40 to + 55 degrees Celsius |
| Power consumption | Nominalt <0,5W, maximum 4 W. |
| 230V output | 230V / 16A |
| Alarm inputs (digital inputs) | 2 st, 3-30 VDC can be set Normally Open or Normally Closed |
| Internal temperature sensor | +/- 2 degrees at 25 grader C och 230V-outputnot activated |
| Input external temperature sensor | OptionalExtern Tempsensor can be connected |
| Short range radio | 2,4 GHz. Output power1 mW, range ca 30 meters in free field |
| Weight | 180 gram |
| Size (without plug) | 135*73*35 mm |
| Approvals | Fulfills all EU requirements and is CE marked. |
Documents
| Product Sheet | Product sheet Ontech Relay 9015 |
| Quick start Guide | Quick Start Guide Ontech Relay 9015 |
Ontech IR 9016

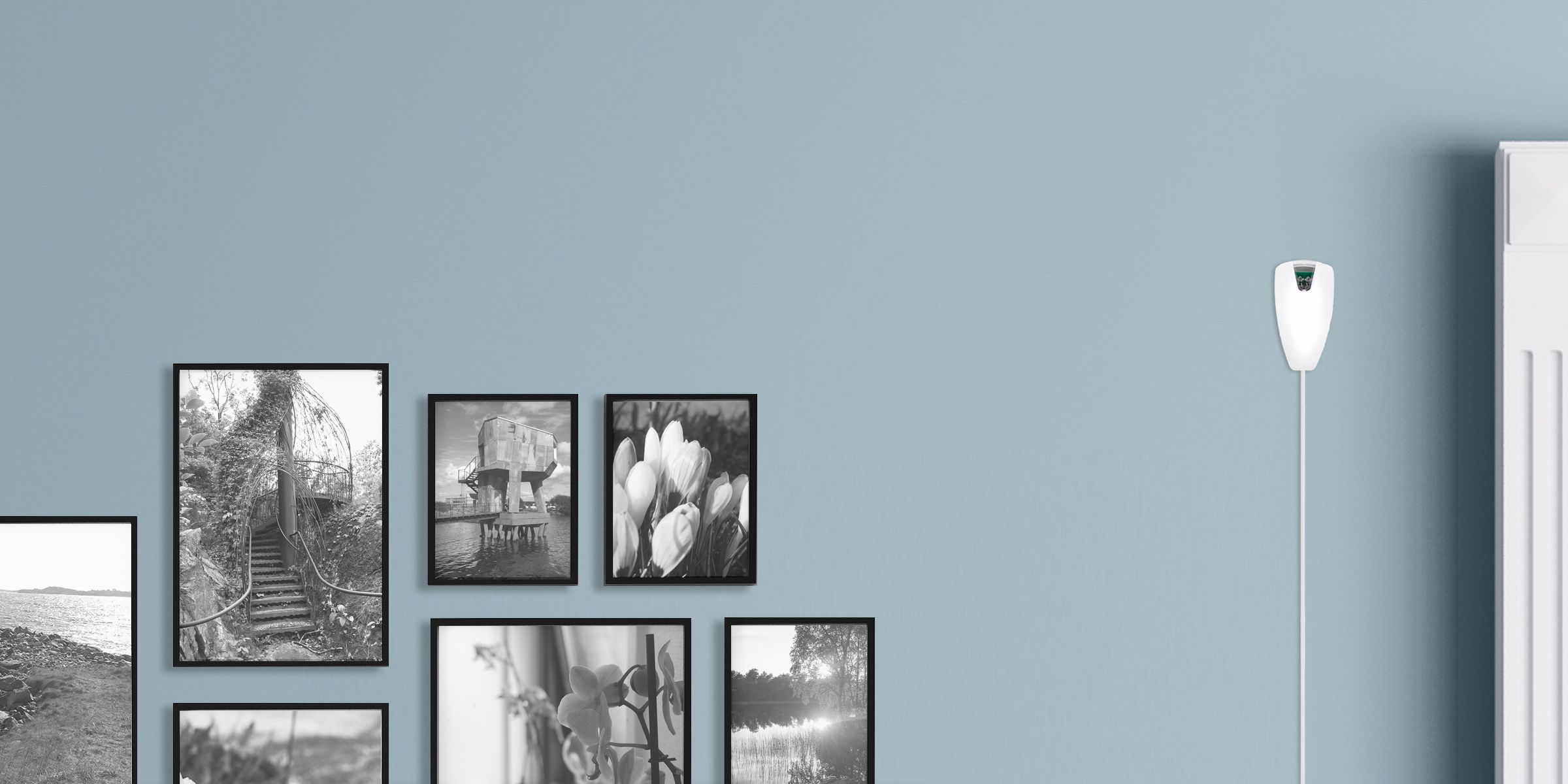

Ontech IR 9016 is an accessory that you connect to Ontech GSM 9040 and allows you to control your air heat pump at a distance. You simply move the air heater pump remote control to your phone, tablet or computer.
Functions
Specifications
Documents
- Ontech IR 9016 connects to Ontech GSM 9040.
- Air heat pumps are controlled via Ontech Control or SMS or Android app wherever you are.
- Set temperature, mode and fan.
- Fits the major brands of air heat pumps on the market. A detailed list can be found here.
- The last software is available for download on the product page for Ontech GSM 9040.
- Updating is easy by connecting the supplied USB cable to a Windows computer.
Specifications
- Cord 1,5 meter
- Compatible with most air heater pumps and air conditioners on the Scandinavian market. See list här.
- Range approx. 7 meters.
Dokument
| Product sheet Ontech IR 9016 | |
| List of compatible air heat pumps | List of compatible air heat pumps |
| Quickstart Guide för Ontech GSM 9040 | Quickstart Guide Ontech GSM 9040 (Ontech Control) Quickstart Guide Ontech GSM 9040 (SMS) |
Ontech Alarm Box 9012

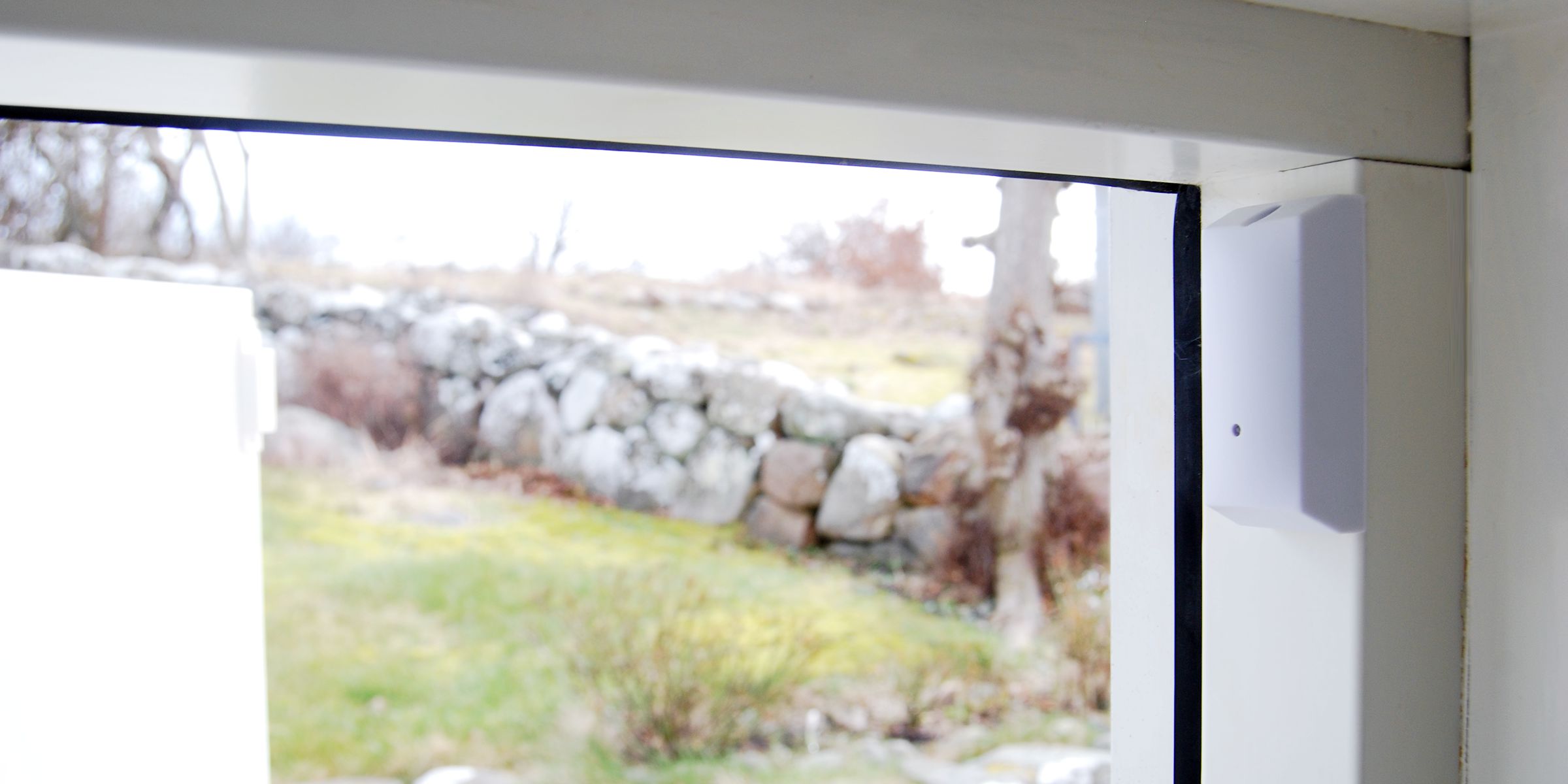

Ontech Alarm Box 9012 is a wireless accessory for the Ontech GSM 9025 or Ontech GSM 9040 main units. It hast has a built-in magnetic switch, an alarm input and a temperature sensor.
Functions
Specifications
Documents
Functions
- Works with the main units Ontech GSM 9009/9020/9025/9030/9035/9040.
- The device communicates with the main unit with a short range radio on the frequency of 2,4 GHz. Up to 7 Ontech Alarm Box can be connected to each main unit.
- The unit has a built-in magnetic switch and magnet included. Suitable for alarming doors and windows.
- The device has two alarm inputs (Normally Closed or Normally Open) for which different types of alarm sensors can be connected, such as fire alarms, motion detectors, level guards etc. The unit also has a temperature sensor that reports the current temperature at the status request .
- The device is powered by a 3V lithium-ion battery that lasts at least two years. When the battery starts to run out, a message about Low Battery will be sent to everyone on the alarm list.
- Up to 7 devices can be wirelessly connected to each main unit of the Ontech GSM system. The range is approximately 30 meters in free field. This is usually enough for a normal sized villa.
Specifications
| Temperature range | – 40 to + 55 degrees Celsius |
| Battery | 3 V Litium, will last for more than two years |
| Magnet switch | Built-in magnetic switch. magnet is included. |
| Alarm inputs | 2 inputs, one Normally Open function and one Normally Closed function |
| Temperature sensor | +/- 1 grader |
| Short range radio | 2,4 GHz. Output power 1 mW, working range ca 30 meters in free field |
| Weight | 34 gram iicluding battery |
| Mått | 75*32*25 mm |
| Approvals | Fulfills all EU requirements and is CE marked. |
Documents
| Product sheet |
Product sheet Ontech Alarm Box 9012 |
| Quickstart Guide | User manual Ontech Alarm Box 9012 |
Ontech Backup battery keeps the device alive when power fail occur. Fits the models Ontech GSM 9020, 9025, 9030, 9035 and 9040.
The software for the devices supports alarms in case of power failure.
Functions
- Lithium ion battery 3,7 volt 1000 mAh.
- Are buult-in in the models 9025, 9035 och 9040.
- Can also connect to models 9020 and 9030
- Necessary for the power failure alarm function.
- Keeps the device alive 10 to 20 hours after power failure.
